High-Quality Hot-Dip Galvanizing: Strengthening Your Products Against Corrosion & Wear

High-quality Hot-dip Galvanizing Process for Enhanced Durability and Corrosion Resistance

Hot-dip galvanizing, a method employed for more than two and a half centuries, effectively safeguards steel and iron against the detrimental effects of corrosion. This refined process involves immersing crafted steel into a bath of molten zinc. As the iron within the steel interacts with the zinc, it generates a firmly adhered alloy layer that serves as a barrier against corrosion. Galvanized steel boasts a notably reduced life cycle cost in comparison to alternatives such as painted steel or epoxy-coated surfaces, eliminating the need for coating maintenance throughout its operational lifespan.

Inquiry Now

Add to Card

Application

The Hot Dip Galvanizing Process, as the term implies, involves immersing steel into a bath of heated, liquefied zinc. During this process, a metallurgical reaction, known as diffusion, takes place between the iron within the steel and the hot zinc. This diffusion ensures that the zinc coating adheres evenly and consistently to all surfaces of the steel, achieving a uniform thickness.

Upon removal from the zinc bath, the steel's surface interacts with atmospheric oxygen, resulting in the formation of zinc oxide. Subsequently, this oxide further reacts with carbon dioxide, ultimately yielding a protective layer of zinc carbonate. Consequently, the steel acquires a multi-layered, corrosion-resistant coating composed of zinc metal and an iron-zinc alloy.

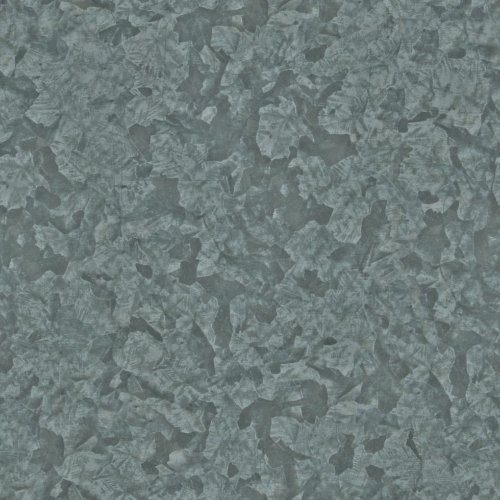

Visually, hot-dip galvanized steel stands out from other galvanized variants due to its distinctive "spangle" pattern—a mottled, crystalline appearance that gives it a unique aesthetic.

What is Hot Dip Galvanizing Used For?

Galvanized steel exhibits remarkable versatility, finding applications across diverse industries such as agriculture, automotive, construction, solar energy, telecommunication, and numerous others. Its corrosion-resistant properties make it an ideal choice for environments prone to moisture or exposure to harsh weather conditions.

To enhance durability, screws, nuts, bolts, tools, and wires of all types undergo galvanization. Furthermore, galvanized steel forms the backbone of steel-frame buildings, supporting their substantial weight. Fences, roofs, staircases, and various other structures commonly incorporate galvanized steel due to its strength and resilience.

Beyond its practical advantages, galvanized steel also boasts aesthetic appeal. Many architects embrace its use in their designs, drawn to its shiny surface that exudes a sleek, modern aesthetic favored in contemporary architecture.

Hot Dip Galvanizing Benefits: Steel Protection, Corrosion Protection & More

Creates a barrier between the steel and the environment: Galvanizing process applies a protective layer to steel, effectively serving as a shield against the external environment, including water, wind, salt, debris, and any other harmful factors that could deteriorate the steel.
Makes the surface abrasion-resistant: Hot dip galvanizing provides exceptional resistance to abrasions, and even in the event of scratches or gouges, it maintains its ability to effectively prevent corrosion.
Provides complete coverage of the steel: Galvanizing steel ensures that every square inch of the steel surface is thoroughly coated, offering comprehensive protection.
Offers a long, maintenance-free life span: Galvanized steel eliminates the need for annual spraying, re-coatings, or any additional maintenance measures.

product specifications

Considerations to make during the hot dip galvanizing process

During the hot-dip galvanizing process, there are several important factors to keep in mind to ensure a successful and high-quality coating. Here are some key considerations:

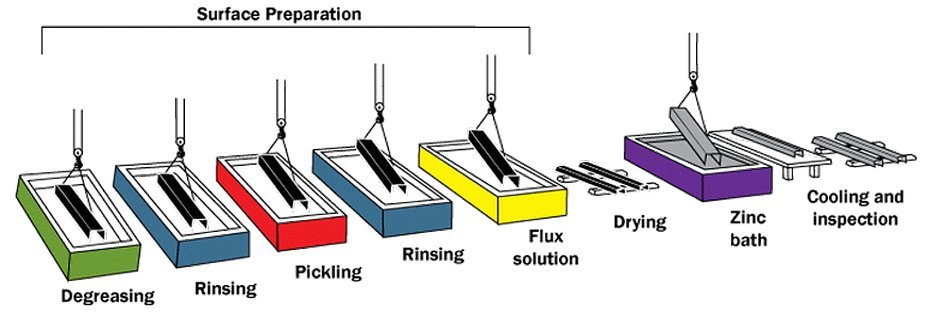

Cleaning Methods: To effectively remove impurities from the surface, use effective cleaning processes such as degreasing, alkaline cleaning, acid pickling, or abrasive blasting. The cleanliness of the surface has a direct impact on the zinc coating’s quality. Because Poor adhesion and coating flaws might result from insufficient surface preparation.

Material Selection: Ensure that the steel or iron being galvanized is suitable for the process. Certain materials, such as cast iron or steels with high silicon or phosphorus content, may require special considerations or pre-treatments.

Surface Profile: Achieve an appropriate surface profile through abrasive blasting or other mechanical methods. A suitable surface profile promotes better zinc adhesion and coating durability.

Material Thickness: Consider the thickness of the steel or iron articles, as thicker materials may require longer immersion times to achieve the desired coating thickness.

Design Considerations: Ensure that the design of the articles allows for proper drainage of excess zinc and uniform coating thickness. Avoid sharp edges, crevices, or complex geometries that can trap zinc or hinder drainage.
